Maximizing Efficiency in Powder Coating Lines: Structure and Benefits of SRP Infrared Radiant Burners

In modern industrial finishing, the efficiency and quality of the curing process are critical to overall throughput and finish durability. For powder coating lines, traditional hot-air convection systems are increasingly being replaced by advanced technological solutions. The SRP Infrared Radiant Burner represents a premier, field-proven innovation—backed by over 5 years of successful deployment in demanding coating environments—engineered to significantly reduce energy consumption while upgrading finish consistency.

1. Core Structural Analysis of the SRP Radiant Heating System

The exceptional performance of the SRP Infrared Radiant Burner is rooted in its patented, highly engineered component architecture. Each element is optimized for thermal transfer, safety, and operational longevity:

·  Advanced Burner & Aluminized Steel Tube Integration: Designed by specialized international manufacturers, the system features a custom-engineered combustion cup that optimizes flame length. This works in perfect synergy with high-radiation-efficiency aluminized steel tubes to maximize heat output and extend service life.

·  Honeywell Electromagnetic Valve Technology: Critical gas control relies on world-renowned Honeywell valves. These heavy-duty components offer manual shut-off, rapid electromagnetic flame-cut, reliable pressure stabilization, and a broad temperature tolerance for leak-free, long-cycle operation.

·  Customized Program Controller (CSA Certified): Serving as the core control hub, the program controller features a proprietary script authorized by SRP Canada specifically tailored for industrial drying and curing. It complies fully with North American CSA certification standards, incorporating robust multi-stage safety measures including flame-out protection and low-pressure cut-offs.

·  Patented Combustion System (US Pat. 6227451 / CA Pat. 2310789): This patented directional flame-injection assembly guarantees a longer, remarkably uniform flame. The result is absolute combustion stability and industry-leading radiant efficiency.

·  Flexible Stainless Steel Gas Connectors: Specially designed for gas fuel lines, these flexible stainless steel connectors safely accommodate the thermal expansion and contraction movements of the equipment, preventing structural stress and gas leakage.

·  High-Efficiency Aluminized Radiant Tubes: While standard systems utilize painted carbon steel, SRP utilizes premium aluminized radiant tubes that undergo high-temperature heat treatment and precision resistance welding. This achieves a thinner tube wall for accelerated, low-resistance radiant heat transfer, superior corrosion protection, and zero deformation at extreme temperatures.

2. Key Benefits of Using SRP Infrared Burners in Powder Coating Lines

Implementing SRP infrared technology into a powder coating curing oven delivers immediate competitive advantages over traditional convection systems:

High Energy Efficiency & Fuel Savings

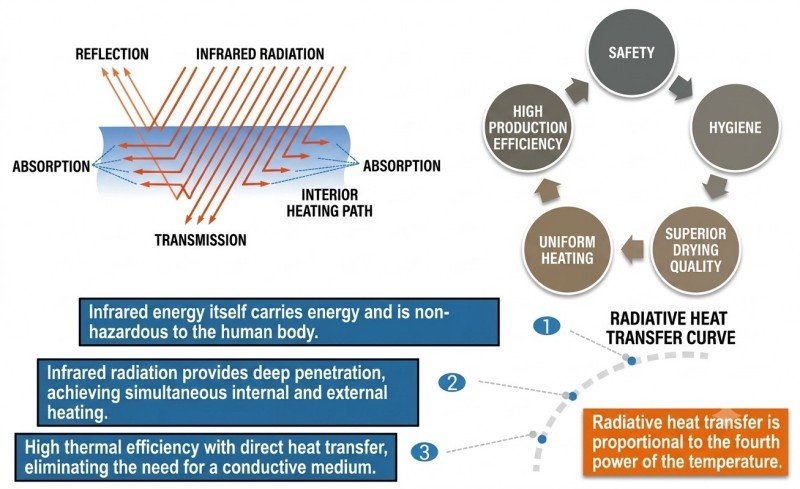

Unlike hot-air convection systems that rely on heating the entire volume of air inside an oven, infrared radiation transfers energy directly to the powder chemistry and the metal substrate. By eliminating the need for a heat-conductive air medium, thermal efficiency is exponentially increased, significantly cutting gas consumption and utility costs.

Simultaneous Cross-Linking & Through-Body Heating

Infrared radiation possesses deep wave penetration capabilities. In a powder coating application, this allows the heat to penetrate through the powder layer to heat the metal surface simultaneously. Curing from the "inside out" prevents surface skinning, eliminates solvent/gas trapping, and ensures a superior, defect-free finish with excellent adhesion.

Enhanced Curing Uniformity & Finish Quality

Supported by the patented SRP directional flame-injection system, the heat profile across the radiant tubes remains entirely uniform. This prevents localized hot spots or under-cured zones in the oven, ensuring consistent gloss, color matching, and structural cross-linking across all coated parts—regardless of complex geometries.

Rapid Startup and High Production Throughput

Traditional hot-air ovens require lengthy pre-heating cycles to bring the massive air volume up to curing temperature. SRP Infrared Burners achieve operational temperatures almost instantly. This rapid response time dramatically shortens cycle times, accelerates line speeds, and boosts the overall production capacity of the coating facility.

Uncompromising Safety and Operational Reliability

With dual North American patent protections, premium Honeywell valves, and a specialized CSA-certified controller, the system provides advanced industrial safety protections （including multi-point flame monitoring and gas pressure cut-offs）. This lowers equipment failure rates, reduces downtime, and ensures a safe working environment.
